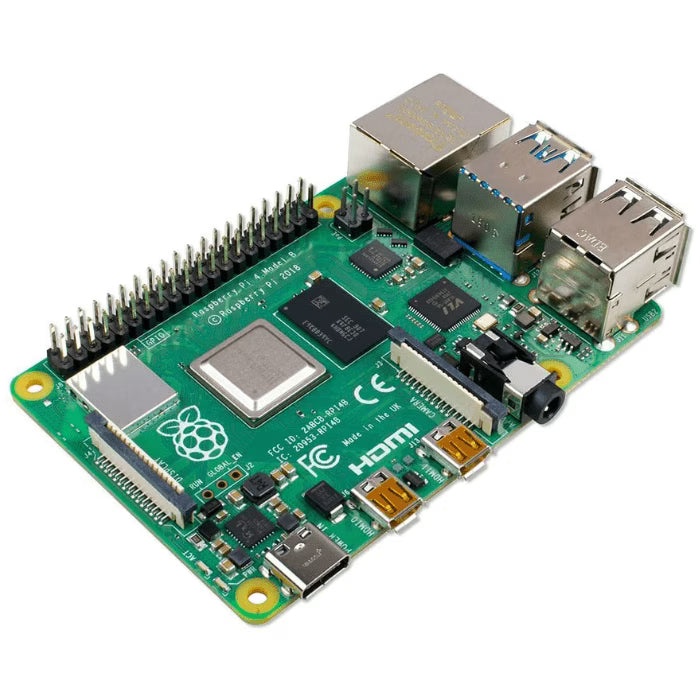

Raspberry Pi 4
The Raspberry Pi 4 is a single-board computer based on the Broadcom BCM2711 SoC, featuring a quad-core 64-bit ARM Cortex-A72 processor running at 1.5–1.8GHz. It provides improved processing capability over earlier models, with better multitasking and overall system responsiveness.
It includes LPDDR4 RAM options ranging from 1GB to 8GB and uses a microSD card for storage. The board also introduces a more capable I/O subsystem with USB 3.0, true Gigabit Ethernet, and dual micro-HDMI ports supporting up to 4K display output.
The VideoCore VI GPU enables hardware-accelerated video decoding and improved graphics performance compared to previous generations. Combined with higher memory bandwidth and updated connectivity, the system offers more stable multitasking, better media handling, and improved general-purpose computing performance.
Specifications
| Processor Model | Broadcom BCM2711 |
| Architecture | 64-bit ARM Cortex-A72 |
| Processor Cores | 4 |
| Clock Speed | 1.5–1.8 GHz |
| GPU Model | VideoCore VI |
| GPU APIs | OpenGL ES 3.1, Vulkan 1.2 |
| Memory Type | LPDDR4 |
| Memory Variants | 1GB, 2GB, 4GB, 8GB |
| Primary Storage | microSD card slot |
| Storage Mode | UHS-I supported |
| USB 3.0 Ports | 2 |
| USB 2.0 Ports | 2 |
| USB 3.0 Speed | 5Gbps |
| Ethernet | Gigabit Ethernet |
| WiFi | Dual-band 802.11ac |
| Bluetooth | Bluetooth 5.0, BLE |
| Display Output | 2 × micro-HDMI |
| Max Resolution | 4K (dual display supported) |
| Video Decoder | 4Kp60 H.265, 1080p60 H.264 |
| Audio Output | 3.5mm jack, HDMI audio |
| GPIO | 40-pin header |
| Camera Interface | CSI |
| Display Interface | DSI |
| Power Input | 5V/3A via USB-C |
| PoE Support | Yes (via PoE HAT) |
| Dimensions | 85mm × 56mm |
| Release Year | 2019 |
| Supported Operating Systems | Raspberry Pi OS, Ubuntu, Debian, Fedora, Arch, others |
What's In The Box
- 1 × Raspberry Pi 4 Model B Board
- Documentation
Best for
- General-purpose computing and desktop use
- Media center and 4K video playback
- Home servers and networking applications
- Retro Emulation
- IoT and embedded systems
- Robotics and hardware prototyping
