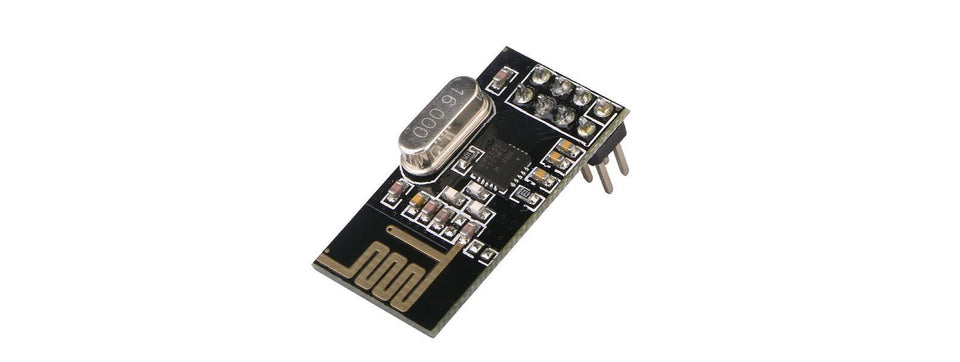

NRF 24L01 Module

The NRF24L01 is a widely used wireless communication module that enables low-cost and low-power data transfer between devices. In this blog, we will explore the operations of NRF24L01, its differences from NRF24L01+, SPI interface, versions of NRF24L01+, module pinout, coding, and transmitter and receiver connections.

NRF24L01 is a single-chip transceiver module that uses the SPI protocol or an RF24 library. Here is all that you need to know about NRF24L01 how it works, NRF24L01 Arduino Guide, and NRF24L01 Module Pinout.

The transceiver module consists of fully integrated frequency synthesizers, a crystal oscillator, an amplifier, a demodulator, a modulator, and an Enhanced ShockBurst protocol engine.
